What is Insul-Quilt?



Since 1959, Insul-Quilt, Inc. has been the industry leader in noise control and reduction. The second generation family owned business combines hard work and commitment with a manufacturing process that meets customer demand in quality, service and volumes. Insul-Quilt manufactures a variety of quilted and panel products for both interior and exterior applications.



Over the past 50 years Insul-Quilt has gained a reputation among builders and architects for providing maximum environmental noise control and reduction products for sound stages and production studios. The interior quilt product uses have expanded to included casinos, hospitals, schools, office buildings, hotels and in other noise control applications. A large customer base of major companies has proven our quilt product out performs even the most acclaimed sound control products. Exterior quilt product uses include construction sites, freeways, and other noise ordinance applications.

Insul-Quilt products have received a Noise Reduction Coefficient (NRC) of up to 1.05 by independent testing. Insul-Quilts products are manufactured in the USA and contain up to 80% recycled materials. Standard quilts are made with three inches of special fiberglass fill wrapped in woven fiberglass cloth and sewn sides.



Insul-Quilt products are category tested at third party labs for NRC, STC, flame spread, smoke density and UV performance.  Our products have versatile noise control and insulating qualities safe for any application. Insul-Quilt are approved by the City of Los Angeles Building and Safety as an interior Plenum finish material.

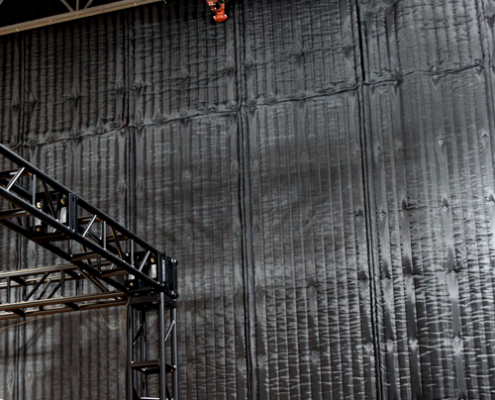

Insul-Quilt Studio Quilt Finished Installation

STUDIO QUILT IS IDEAL FOR:

Recording/Production Studios

Noisy Conference Rooms

Movie Theaters

Mechanical / Equipment Operating Areas

Gymnasiums, Training Centers or High Ceiling Facilities



Studio Quilt is the perfect solution for noise absorption and vibration reduction. Studio Quilt has an NRC rating range from .90 to 1.05 depending on the quilt backing. Studio Quilt assures all noise is absorbed efficiently. Studio Quilt colors are black and white with white paintable in any color using latex paints and available in lengths up to 36 feet. Grommets and sewn ends are customized features. Studio Quilt is Class A Flame Test (ASTM E84) rated.



Product Codes:

IQF-S - Quilt with Scrim

IQF-F - Quilt with Foil







Just case Logo out.png

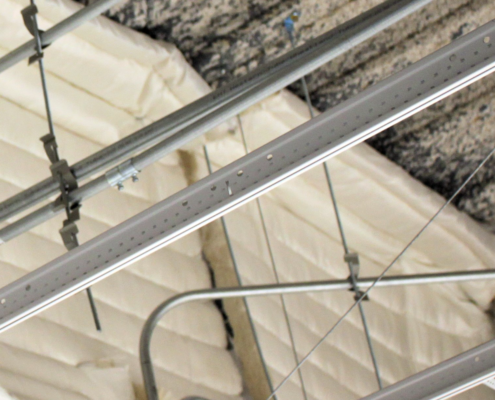

Plenum Barrier Quilt

Plenum Quilt is a more cost effective solution to building full height non-rated walls, especially where mechanical ducts or other obstructions exist. The Plenum Quilt is simple to install and mitigates sound transmission to adjacent offices or rooms.  The Plenum Quilt can easily be cut to size at job sites and installed with simple instructions. Plenum Quilt is Class A Flame Test (ASTM E84) rated.



Product Codes:

IQF-S - Quilt with Scrim

IQF-F - Quilt with Foil


Insul-quilts plenum barrier installation demonstration



Insulquilts Baffle Quilt demonstration

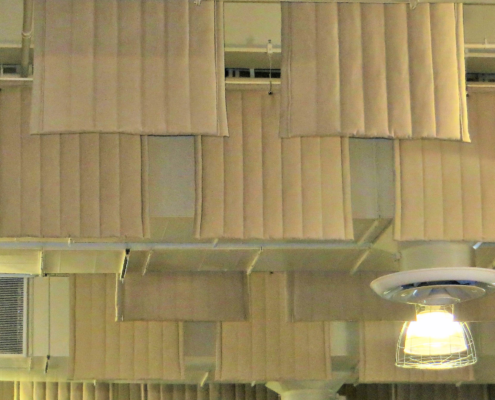

Baffle Quilt

Baffle Quilt works extremely well where localized noise disrupts productivity or comfort in an industrial or commercial setting. Baffle Quilt is generally used in sites with higher ceilings, larger open areas or around operating machinery.  Baffle Quilt may be hung independently or in groups and also can be placed in staggered formation to create a cloud. Grommets and sewn ends are customized features with standard colors being white and black. Baffle Quilt is Class A Flame Test (ASTM E84) rated.



Product Codes:

IQF-S  - Quilt with Scrim

 IQF-F - Quilt with Foil

 IQF-G - Décor Fabric with Scrim


Pano edit 1.jpg


Nylon Absorbing Quilts Interior/Exterior

Nylon Quilt Absorbing Interior/Exterior is ideal in noise reduction for indoor industrial application where the quilt needs to be cleaned, in a harsh environment or outdoor applications where quilts have sun exposure. The Nylon Quilt is made using a vinyl coated fiberglass cloth covering three inches of special fiberglass insulation all attached to scrim cloth backing. The Nylon Quilt comes in panels or in rolls with lengths up to 30 feet. Grommets and sewn ends are customized features. Standard color is gray with other colors available upon request.

Nylon Quilt has an NRC range rating of .70, rated as a Class A Flame Test (ASTM E84) product and UV tested using ASTM G154 procedure. Nylon Quilt is cleanable and tolerant to sun, humidity and chemical environments.









Noise Absorbing Quilts for noise isolation - pictured exterior

Product Codes:

IFB-VS - UV Vinyl with Scrim

IFB-VR - UV Vinyl with MLV Reinforced layer (Mass Load Vinyl)

IFB-VV - UV Vinyl double sided

IFB-VMS ½ lb - UV Vinyl with MLV (Mass Load Vinyl)

IFB-VMS 1 lb - UV Vinyl with MLV (Mass Load Vinyl)



NYLON NOISE BARRIER QUILT (Exterior)

Nylon Quilt barrier exterior product is used to contain noise and reduce sound penetration at construction sites or in heavy machinery use areas. Nylon Quilt barrier is made using vinyl coated Nylon cloth covering three inches of special fiberglass insulation all attached to a scrim fabric backing and Mass Loaded Vinyl. Nylon Quilt barrier has high tensile and tear strength and is easy to install. Nylon Quilt is made into rolls of desired length. Grommets or finished ends and Velcro are customized features. Standard color is gray with other colors available.

Nylon Quilt products have an STC rating range of 24 to 29, a Class A Flame Test rating (ASTM E84) and UV tested using ASTM G154 standards. Nylon Quilt is cleanable and tolerant to humidity and chemical environments.





Insulquilts Nylon Noise Barrier Quilt on Outdoor Wall

Product Codes:

 IFB-VMV  - UV Vinyl both sides with MLV (Mass Load Vinyl)  in between

 IFB-VMS - UV Vinyl with MLV (Mass Load Vinyl)





Decorative Guilford of Maine Fabric Quilt

Fabric Quilt is the perfect solution for noise absorption and vibration reduction in a woven fabric cover. Fabric Quilt has an NRC rating of 1.05. Fabric Quilt assures all noise is absorbed efficiently while displaying a woven fabric finish in a variety of colors options.  Fabric Quilt is available with sewn ends and grommets as customized features in lengths up to 36 feet. Fabric Quilt is Class A Flame Test (ASTM E84) rated.

Product Codes:

IQF-G - Décor Fabric with Scrim
